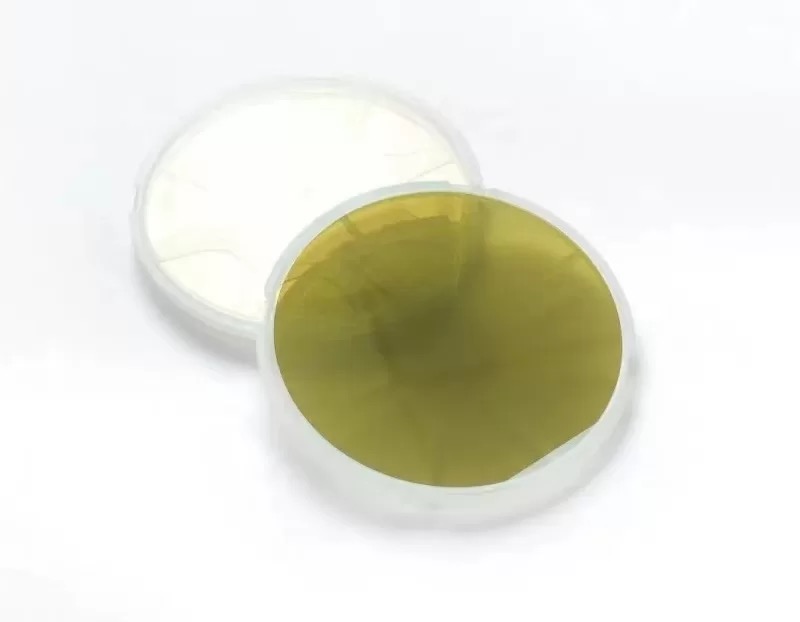

Silicon Carbide Substrate 6-Inch Production/Dummy Grade 4H Semi-Insulating SiC Wafer for IGBT: Advancing High-Power and High-Frequency Electronics

Introduction

Silicon Carbide (SiC) substrates are revolutionizing power electronics and high-frequency systems, offering superior performance over traditional silicon. The 6-inch Production Grade 4H Semi-Insulating SiC Wafer is tailored for Insulated Gate Bipolar Transistors (IGBTs) and RF devices, combining high thermal conductivity, voltage tolerance, and semi-insulating properties. Complemented by Dummy Grade SiC wafers for process optimization, these materials address the growing demand for efficient, compact, and reliable solutions in electric vehicles (EVs), 5G infrastructure, and renewable energy. This article delves into their technical specifications, manufacturing advantages, and transformative applications.

Key Features of 6-Inch 4H Semi-Insulating SiC Substrates

1. 4H-SiC Polytype Excellence

   • High Resistivity (>1e8 Ω·cm): Semi-insulating properties minimize signal loss, ideal for high-frequency RF and microwave applications.

   • Thermal Conductivity (490 W/m·K): Efficient heat dissipation supports high-power IGBT operation at temperatures exceeding 200°C.

2. Production Grade Precision

   • Low defect density (<0.5 cm⁻²) and uniform crystal structure ensure high yield for automotive and industrial IGBT modules.

   • 6-inch (150mm) diameter increases die count by 2.5x vs. 4-inch wafers, reducing production costs by ~30%.

3. Dummy Grade Utility

   • Non-product grade wafers calibrate epitaxial reactors, lithography tools, and slicing equipment, minimizing wear on premium substrates.

   • Cost-effective solution for R&D prototyping and process validation.

Applications in IGBT and High-Frequency Systems

1. Electric Vehicle (EV) Power Modules

   • SiC-based IGBTs enhance inverter efficiency by 10–15%, extending driving range and enabling ultra-fast 800V charging systems.

2. 5G and RF Communication

   • Semi-insulating 4H-SiC substrates enable low-loss RF devices for 5G base stations and satellite communication systems.

3. Renewable Energy Converters

   • High-voltage SiC IGBTs improve efficiency in solar inverters and wind turbine converters, reducing energy waste.

4. Industrial Motor Drives

   • High-frequency IGBTs minimize switching losses in industrial automation and data center power supplies.

Production Challenges & Innovations

1. Crystal Growth & Defect Control

   • Challenge: Growing semi-insulating 4H-SiC ingots requires precise control of intrinsic defects (e.g., vanadium doping) to achieve high resistivity.

   • Solution: Modified PVT (Physical Vapor Transport) growth with AI-driven thermal gradient optimization.

2. Wafer Processing Complexity

   • Challenge: Maintaining surface flatness (<5 µm TTV) and roughness (<0.2 nm Ra) across 6-inch wafers.

   • Solution: Advanced chemo-mechanical polishing (CMP) and in-situ metrology for real-time adjustments.

3. Cost-Efficient Scaling

   • Challenge: Transitioning from 4-inch to 6-inch production lines demands significant capital investment.

   • Solution: Strategic partnerships (e.g., Wolfspeed & Infineon) to standardize processes and share R&D costs.

Role of Dummy Grade 4H-SiC Wafers

1. Process Calibration

   • Validate epitaxial growth parameters (e.g., gas flow, temperature) for GaN-on-SiC RF devices and IGBT epitaxy.

2. Equipment Testing

   • Test diamond wire saws and plasma etching tools without consuming high-value production-grade wafers.

3. Yield Improvement

   • Identify and mitigate defects in pilot production phases, enhancing overall yield for mass manufacturing.

Market Trends & Future Outlook

1. EV and 5G Expansion

   • The EV market drives 60% of SiC demand, while 5G deployment fuels RF SiC substrate growth at a 25% CAGR (2023–2030).

2. Cost Reduction Roadmap

   • 6-inch wafer adoption is projected to reduce SiC IGBT costs by 35% by 2026, accelerating market penetration.

3. Next-Gen Innovations

   • Monolithic integration of SiC IGBTs with CMOS logic for smart power modules in AI-driven systems.

Conclusion

The 6-inch Production Grade 4H Semi-Insulating SiC substrate and Dummy Grade wafers are pivotal in advancing high-power and high-frequency electronics. Their exceptional thermal efficiency, voltage tolerance, and semi-insulating properties empower innovations in EVs, 5G, and renewable energy systems. As manufacturing processes mature and costs decline, SiC will cement its role as the backbone of next-generation power and RF technologies, driving global sustainability and connectivity.
