Silicon Carbide EPI Substrate 6-Inch Production Grade SiC Wafer for IGBT: Powering the Future of High-Efficiency Electronics
Introduction

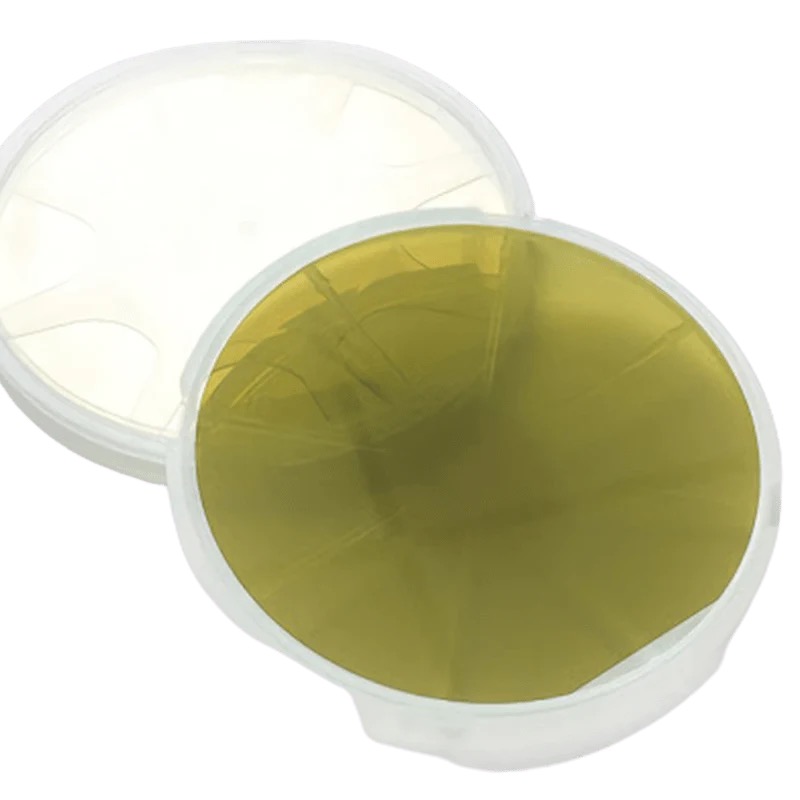

As industries transition toward energy-efficient power electronics, Silicon Carbide (SiC) has emerged as a game-changer, enabling devices that outperform traditional silicon in high-voltage, high-temperature environments. The 6-inch Silicon Carbide EPI Substrate Production Grade Wafer is engineered specifically for Insulated Gate Bipolar Transistors (IGBTs), offering unmatched efficiency, durability, and scalability. This article explores its technical specifications, manufacturing advantages, and transformative applications in next-generation power systems.
Key Features of 6-Inch Production Grade SiC EPI Wafers
High-Purity Epitaxial Layer
Ultra-thin, defect-free SiC epitaxial (EPI) layers grown via chemical vapor deposition (CVD), ensuring optimal carrier mobility and breakdown voltage (>1,700V).
Controlled doping (N-type/P-type) for tailored IGBT performance.
Large Diameter, High Yield
6-inch (150mm) wafer size increases die count per wafer by 2.5x compared to 4-inch, reducing production costs by ~30%.
Production-grade quality (defect density <0.5 cm⁻²) ensures high yield for automotive and industrial applications.
Superior Thermal Management
Thermal conductivity (490 W/m·K) 3x higher than silicon, minimizing heat dissipation challenges in high-power IGBT modules.
Voltage and Temperature Resilience
Operates at temperatures up to 200°C and voltages exceeding 3.3kV, ideal for electric vehicle (EV) inverters and renewable energy systems.
SEMI-Compliance
Meets SEMI standards for thickness uniformity (±5µm), bow/warp (<50µm), and surface roughness (<0.2nm Ra).
Applications in IGBT Technology
Electric Vehicles (EVs):
SiC-based IGBTs enhance inverter efficiency, boosting EV range by 5–10% and reducing charging times.
Renewable Energy:
Solar inverters and wind turbine converters leverage SiC’s high-voltage tolerance for grid stability and energy harvesting.
Industrial Motor Drives:
High-frequency IGBTs minimize energy loss in factory automation and HVAC systems.
Rail Transport & Smart Grids:
SiC IGBTs enable compact, lightweight traction systems and high-voltage DC transmission.
Production Challenges & Solutions
Epitaxial Growth Uniformity
Challenge: Maintaining consistent doping and thickness across 6-inch wafers.
Solution: AI-driven CVD process control and in-situ metrology for real-time adjustments.
Defect Mitigation
Challenge: Basal plane dislocations (BPDs) and stacking faults degrade device reliability.
Solution: Optimized seed crystal preparation and multi-step CMP polishing.
Cost-Effective Scaling
Challenge: High upfront costs for 6-inch SiC production lines.
Solution: Industry partnerships (e.g., Wolfspeed & GM) to share R&D costs and standardize processes.
Market Trends & Innovations
Automotive Dominance
The EV sector drives 70% of SiC demand, with IGBTs projected to capture a $2.1B market share by 2027 (Yole Développement).
8-Inch Wafer Transition
Leading manufacturers like ROHM and STMicroelectronics are piloting 8-inch SiC EPI wafers, aiming to cut costs by 40% by 2030.
Hybrid IGBT Modules
SiC/Si hybrid IGBTs combine cost efficiency and performance, gaining traction in consumer electronics and data centers.
Conclusion
The 6-inch Silicon Carbide EPI Substrate Production Grade Wafer is redefining the capabilities of IGBT technology, offering unparalleled efficiency and reliability for high-power applications. As industries prioritize sustainability and energy savings, SiC-based IGBTs will play a pivotal role in advancing electric mobility, renewable energy, and smart infrastructure. With ongoing innovations in wafer scaling and defect reduction, SiC is poised to dominate the future of power electronics.
