SiC & GaN Wafer Processing Costs: Challenges, Innovations, and Market Dynamics
Introduction

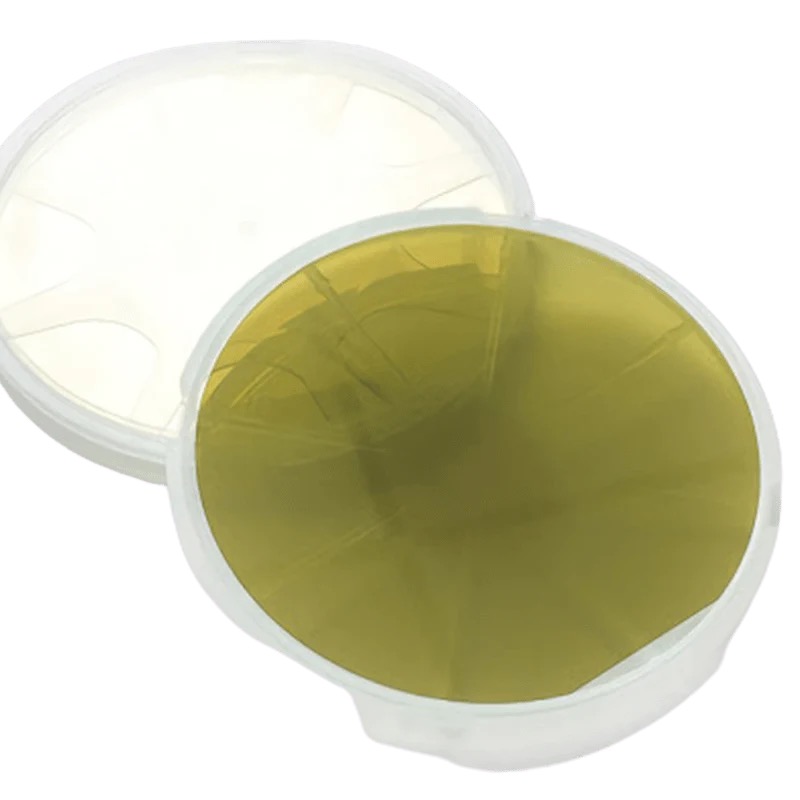

Silicon carbide (SiC) and gallium nitride (GaN) wafers are pivotal for next-generation power electronics, enabling higher efficiency, faster switching, and superior thermal performance compared to traditional silicon. However, their processing costs remain a critical barrier to widespread adoption. This article examines the factors driving SiC and GaN wafer costs, technological advancements to reduce expenses, and market trends shaping their economic viability25.
Key Cost Drivers in SiC & GaN Wafer Processing
Material Complexity and Growth Challenges
SiC: Crystal growth requires extreme temperatures (>2,000°C) and precise control, leading to high energy consumption and low yield rates. Defects like micropipes further reduce usable wafer area6.
GaN: Epitaxial growth on substrates like sapphire or SiC adds complexity. Heterogeneous integration (e.g., GaN-on-Si) reduces costs but introduces lattice mismatch issues5.
Manufacturing Equipment and Scalability
Specialized tools for SiC wafer slicing (e.g., diamond wire saws) and GaN lithography are costly. SiC’s hardness increases tool wear, raising maintenance expenses1011.
Limited 6-inch and 8-inch wafer production lines for SiC/GaN compared to silicon’s mature 12-inch infrastructure hinder economies of scale7.
Low Yield and Defect Sensitivity
SiC wafers face ~30% lower yields than silicon due to crystal defects. GaN devices are sensitive to process variations, requiring stringent quality control64.
Packaging and Testing
High-voltage SiC devices demand advanced packaging to manage thermal stress. GaN’s high-frequency operation necessitates specialized testing protocols511.
Innovations Reducing Processing Costs
Larger Wafer Sizes and Improved Yield
Transitioning from 4-inch to 6-inch SiC wafers (e.g., Wolfspeed’s 200mm fabs) reduces per-die costs by ~20%2.
Advances in defect detection and epitaxial growth (e.g., AI-driven process optimization) enhance yield for GaN-on-Si platforms5.
Process Standardization and Hybrid Technologies
Mainstream 6-inch SiC CMOS fabrication integrates power MOSFETs and digital ICs on the same wafer, lowering production overhead6.
Hybrid architectures (e.g., GaN + SiC in AI power units) optimize performance while sharing manufacturing infrastructure5.
Material and Tooling Advancements
Diamond-coated wire saws and laser dicing improve SiC wafer slicing efficiency, reducing material waste10.
Monolithic GaN ICs (e.g., Navitas’ GaN Power ICs) minimize external components, cutting system-level costs3.
Government and Industry Investments
Companies like ROHM and Infineon are investing billions to scale SiC production, targeting a 50% cost reduction by 203027.
China’s Zhongxin Wafer project aims to break foreign monopolies in large-diameter wafers, lowering regional supply chain costs7.
Market Dynamics and Cost Projections
Demand-Driven Scaling
The EV market drives SiC adoption, with automotive SiC revenue projected to exceed $5B by 2030. GaN dominates consumer fast-charging, targeting 60% market share in USB-PD adapters23.
Data centers adopting 48V GaN/SiC power systems (e.g., 22kW AI racks) prioritize efficiency over upfront costs5.
Price Parity Milestones
GaN achieved cost parity with silicon MOSFETs in 65W chargers by 2023. SiC is expected to match silicon IGBTs in EVs by 202623.
Long-Term Cost Trends
SiC wafer costs are forecasted to drop from ~200 by 2030. GaN epitaxial costs could decline 30% with volume production47.
Conclusion
While SiC and GaN wafer processing costs remain high due to material and technical hurdles, innovations in manufacturing scale, defect reduction, and hybrid integration are accelerating cost competitiveness. As industries like EVs, renewables, and AI demand higher efficiency, the economic gap between SiC/GaN and silicon will narrow, solidifying their role in the future of power electronics257.
